F12 Modified Cell Structure

For Prices with PSA, please contact Customer Service @ 1-800-423-7008

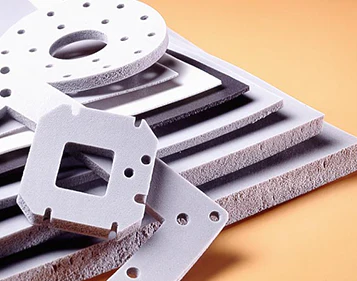

COHRlastic modified cell silicone foam rubber provides excellent flame retardance (UL 94 V-0) with low toxicity and smoke generation in a conformable expanded cellular material. COHRlastics produced in a low 12 lb/ft3 density for light gasketing and insulation applications.

F-12 ranges in thickness from 1/16″” (1.59mm) to 1″” (25.4mm). The standard color is gray, but it is also available in white and black, with minimum quantity requirements.

F-12 also comes in pressure-sensitive adhesive tape form as Strip-N-Stick 512AF,with a film-supported acrylic pressure-sensitive adhesive on one side. COHRlasticffers excellent compression set resistance and resistance to the environment.

Product Range

• F-12- standard product
• F-11, F-14 and F-15 custom product offerings
• SNS 512AF – F-12 in Strip-N-Stickressure-sensitive adhesive tape roll format

Features & Benefits

• Passes UL 94 V-0 – flamer in electronic and electrical equipment
• Passes FAR 25.853 (A-1 and B) and FAR 25.856 (A-1) – flame retardant for aerospace applications
• Passes requirements of FDA extractables 21.CFR17700 – extremely clean elastomer that can be used in non-direct food contact applications
• Excellent compression set resistance- instant recovery in compression applications
• Excellent long-term aging properties- gasket reliability that often outlasts final product
• Weather, moisture, ozone, UV and fungus resistant- perfect gasketing material for outdoor applications
• Can be supplied with acrylic pressure-sensitive adhesive for ease of application

Applications

• Aircraft flame retardant barrier blankets
• Aircraft flame retardant underlayment
• Outdoor light gasketing
• Appliance gasketing
• Military equipment gasketing
• Electronics gasketing
• Electrical insulation
• Sound damping gasketing
